transferflow transfer tanks
California Prop 65 Warning
Warning: Cancer and Reproductive Harm. Go to https://www.p65warnings.ca.gov for more information.
Rectangular fuel tanks
Kick the fuel cans to the curb when you install a safe, legal, and reliable Transfer Flow refueling tank in the bed of your pickup truck. Perfect for refueling vehicles or equipment on the go, our refueling tanks will save you time, money, and hassle. Transfer flow refueling tank system is Department of Transportation (DOT) legal to carry and transfer gasoline, diesel, and kerosene.
Transferflow refueling tanks are made from 12-gauge ReliaSteel®, high-yield U.S. aluminized steel, for superior durability and strength; and powder coated black for durable satin finish. As with all Transfer Flow fuel tank systems, this refueling tank comes complete with all parts needed for installation, down to the last zip tie.
NOTE: Product dimensions include 3″ in width for the mounting brackets and 3″ in height for the filler neck.
- Recommended for drivers who own ATVs, boats, generators, landscape or farming equipment, or want the option to fuel their truck or additional vehicles
- Comes with 12-volt GPI® fuel pump, 12 ft. hose, nozzle, locking cap, wiring harness with cab-mounted power switch, and mounting hardware
- DOT legal for gasoline, diesel, and kerosene
- Fits under most tonneau covers
- Built from 12-gauge ReliaSteel®, high-yield U.S. aluminized steel, for superior durability and strength
- Powder coated black for durable satin finish
- Easy-to-use hose-purge feature eliminates messes
- Pumps up to 8 gallons per minute
- Baffled to prevent fuel sloshing
- 6 year, unlimited mile warranty
- Made in the USA
| PN | Gallon | L | W | H | Finish | Pump |
| 800116206 | 40 | 40″ | 20″(2) | 14.5″(3) | BLK | G / D |
| 800109417 | 50 | 50.38″ | 12.5″(2) | 21.5″(3) | BLK | G / D |
| 080MP09417 | 50 | 50.38″ | 12.5″(2) | 21.5″(3) | BLK | M/EP |
| 080AP09417 | 50 | 50.38″ | 12.5″(2) | 21.5″(3) | AP | G / D |
| 800109420 | 82 | 47.75″ | 19.56″(2) | 24″(3) | BLK | G / D |
| 080MP09420 | 82 | 47.75″ | 19.56″(2) | 24″(3) | BLK | M/EP |
| 080AP09420 | 82 | 47.75″ | 19.56″(2) | 24″(3) | BLK | AP |
| 800109416 | 109 | 54.75″ | 27″(2) | 20″(3) | BLK | G / D |
| 080MP09416 | 109 | 54.75″ | 27″(2) | 20″(3) | BLK | M/EP |
| 080AP09416 | 109 | 54.75″ | 27″(2) | 20″(3) | BLK | AP |
BLK = Black
G / D = Gas / Diesel Pump
M/EP = Methanol / Ethanol Pump
AP = Aviation Pump
(1) = Add 3 in. to the length of the tank for mounting brackets.
(2) = Add 3 in. to the width of the tank for mounting brackets.
(3) = Add 3 in. to the height of the tank for fillneck.
combo fuel tanks
Transferflow refueling tanks are Department of Transportation (DOT) legal to carry and transfer gasoline, diesel, methanol/ethanol, kerosene, and aviation fuels, and features an easy-to-use purge function that moves remaining fuel from the hose back into the fuel tank. The tool box is equipped with locking paddle handles and gas-filled shocks that make it easy to open and close the tool box lid.
TransferFlow refueling tanks are made from 12- and 16-gauge ReliaSteel, high-yield U.S. aluminized steel for superior durability and strength; and powder coated for durable satin black finish. As with all Transfer Flow fuel tank systems, this refueling tank comes complete with all parts needed for installation, down to the last zip tie.
NOTE: Product dimensions include 3″ in width for the mounting brackets and 3″ in height for the filler neck.
- Recommended for drivers who want extra fuel capacity and a safe place to store their gear
- TRAX 3 – computer-controlled automatic fuel transfers
- Perfect for RVs, contractors, and outdoor enthusiasts
- Comes complete with all components needed for installation
- Built from ReliaSteel, U.S. aluminium steel for superior durability and strength
- Gas-filled shocks for easy opening and closing
- Stainless steel locking paddle handles
- Baffled to prevent fuel sloshing
- 6 year, unlimited mile warranty
- Made in the USA
| PN | Gallon | L | W | H | Finish | Pump |
| 800115195* | 40 | 59″ | 21″(1) | 21 | BLK | G / D |
| 800116230* | 70 | 73″ | 24.5″(4) | 27.25″ | BLK | G / D |
| 800115457 | 100 | 53.75″ (1,2,3) | 36.75″ (1,2,3) | 28″ (1,2,3) | BLK | G / D |
(1) –Product dimensions include 3″ in width for the mounting brackets.
(2) –Product dimensions include 3″ in width for the mounting brackets.
(3) –Product dimensions include 3″ in height for the filler neck.
(4) –Product dimensions include 1 1/2″ in width for the mounting brackets.
*The In-Line Fuel Filter Kit (020-01-13958) is not compatible with the Refueling Tank and Tool Box Combo due to fitment restrictions.
California Prop 65 Warning
Warning: Cancer and Reproductive Harm. Go to https://www.p65warnings.ca.gov for more information.
California Prop 65 Warning
Warning: Cancer and Reproductive Harm. Go to https://www.p65warnings.ca.gov for more information.
50/50 gallon split tank
With two 50-gallon tanks in the back of your truck, this unique tank system provides the most versatility while holding two different types of fuel. Our 50/50 split refueling tank system is Department of Transportation (DOT) legal to carry and transfer gasoline, diesel, methanol/ethanol, kerosene, and aviation fuel (Special Permit E-11911). The easy-to-use hose-purge feature allows you to pull any fuel left in the hose back into the refueling tanks to eliminate messes in the truck bed and stretch your extra fuel capacity even further.
The 50/50 split refueling tank is made from 12-gauge ReliaSteel, high-yield U.S. aluminized steel, for superior durability and strength; and powder coated black for durable satin finish. This tank system comes with two 50-gallon fuel tanks, two 12-volt refueling pumps, two 12-foot hoses, two nozzles, two wire harnesses with dash-mounted power switches, mounting hardware, rollover valves, and locking fuel caps.
NOTE: Product dimensions include 3″ in width for the mounting brackets and 3″ in height for the filler neck.
- Recommended for drivers who own ATVs, boats, generators, landscape or farming equipment, or want the option to fuel their truck or additional vehicles
- Comes with 12-volt GPI fuel pump, 12 ft. hose, nozzle, locking cap, wiring harness with cab-mounted power switch, and mounting hardware
- DOT legal for gasoline, diesel, methanol/ethanol, kerosene, and aviation fuel
- Holds two types of fuel
- Built from 12-gauge ReliaSteel, high-yield U.S. aluminized steel, for superior durability and strength
- Powder coated black for durable satin finish
- Easy-to-use hose-purge feature eliminates messes
- Pumps up to 15 gallons per minute
- Baffled to prevent fuel sloshing
- 6 year, unlimited mile warranty
- Made in the USA
| PN | Gallon | L | W | H | Finish |
|---|---|---|---|---|---|
| 800113244 | 50/50 | 47.38″ | 31″(1) | 24.19″(2) | BLK |
| 080AP13244 | 50/50 | 47.38″ | 31″(1) | 24.19″(2) | BLK w/ Aviation Fuel Pump |
| 080BL13244 | 50/50 | 47.38″ | 31″(1) | 24.19″(2) | BLK w/ Spray-On Bed Liner Coating |
| 080MP13244 | 50/50 | 47.38″ | 31″(1) | 24.19″(2) | BLK w/ Methanol Pump |
ACCESSORIES
Maximize your fuel tank with parts approved by TransferFlow .
| Part # | Description |
|---|---|
| 070FU33645 | 15 GPM 12V GPI Aviation Fuel Refueling Tank Replacement Pump |
| 070FU33200 | 15 GPM 12V GPI Methanol/Ethanol Fuel Refueling Tank Replacement Pump |

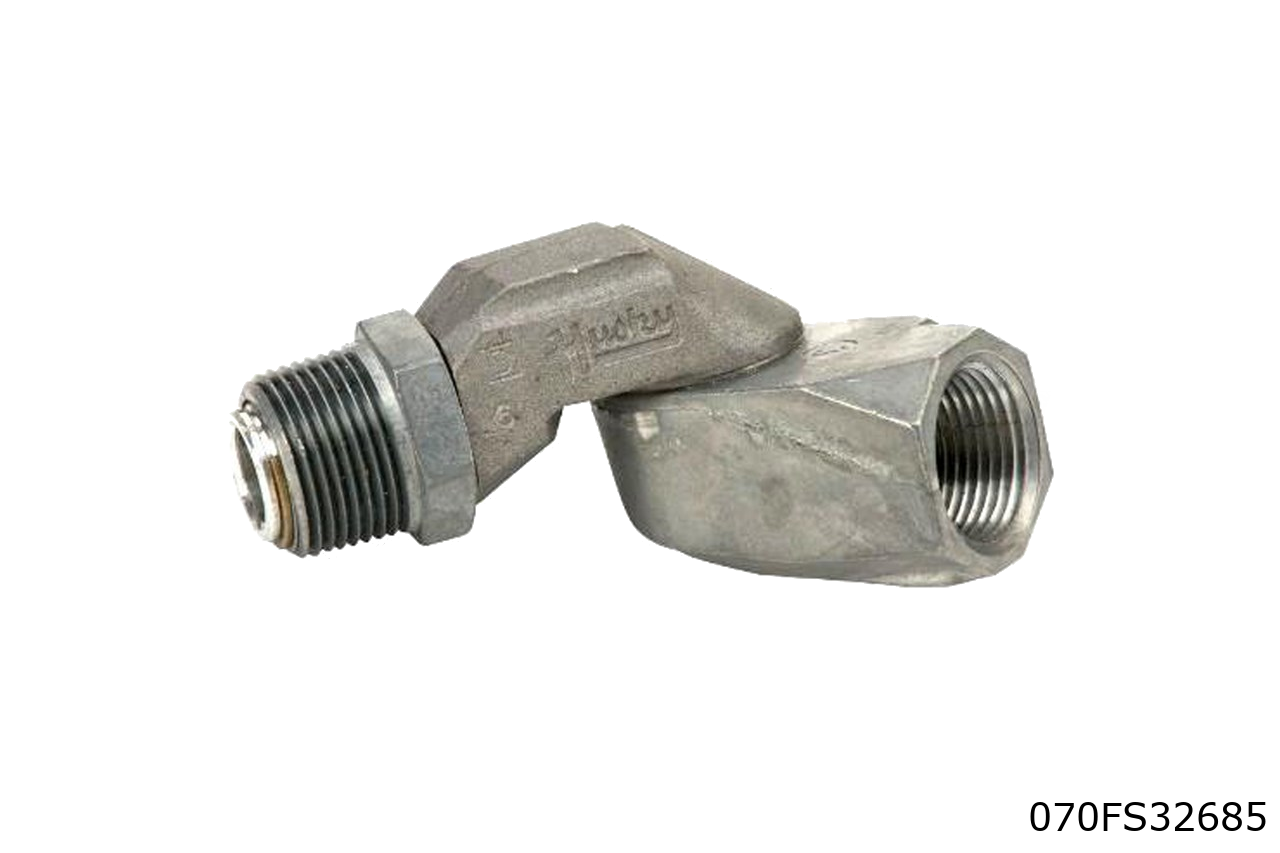

| 070FS32685 | Husky .75″ Hose Swivel for Refueling Tanks |

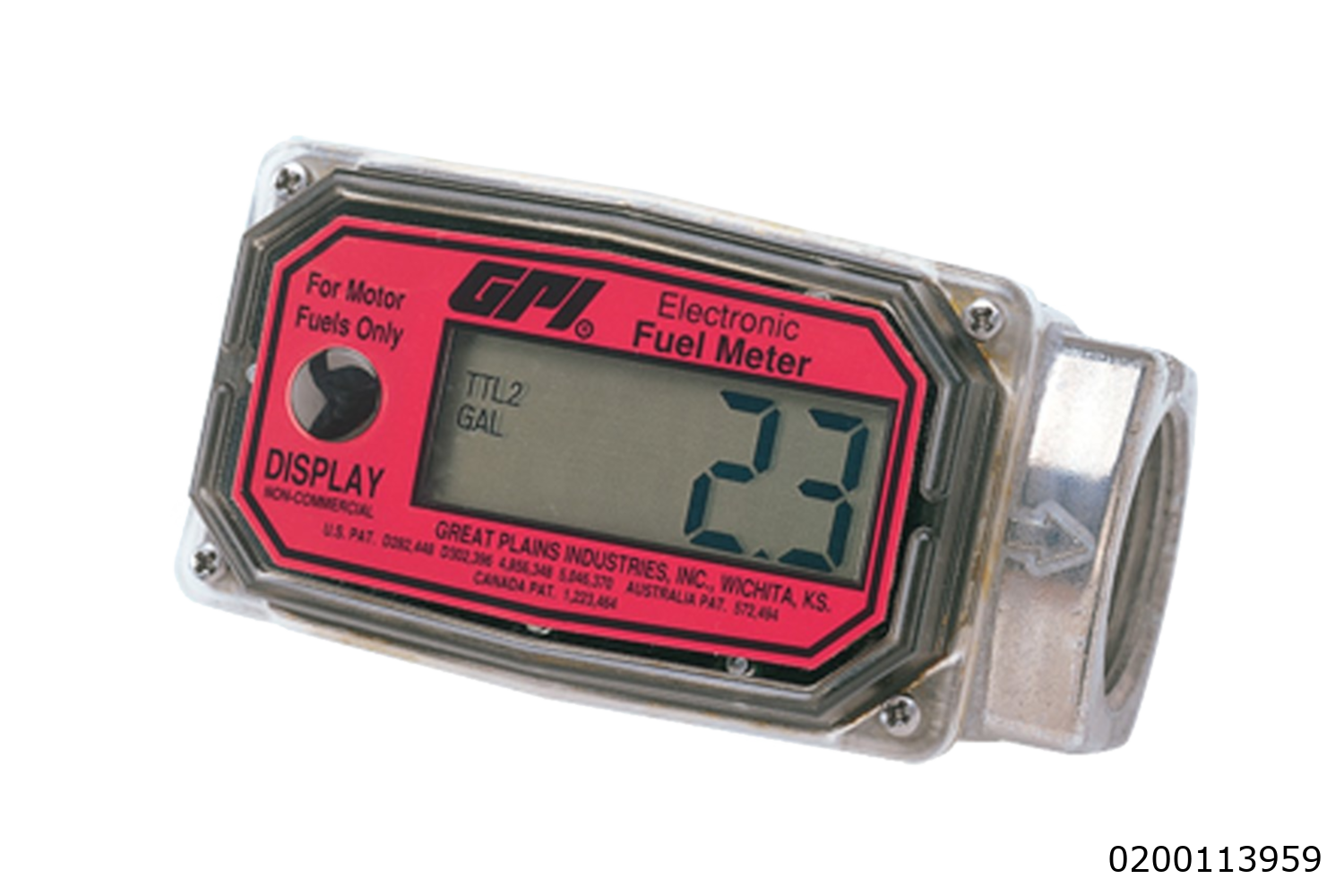

| 0200113959 | GPI Electronic Fuel Meter for Refueling Tanks |
| 0200116384 | In-bed Tank Tie Down Brackets (2) |
California Prop 65 Warning
Warning: Cancer and Reproductive Harm. Go to https://www.p65warnings.ca.gov for more information.
Transferflow transfer tanks
transfer tanks
Product Features
- For drivers who own ATVs, boats, generators, landscape or farming equipment, or want the option to fuel their truck or additional vehicles
- 12V GPI fuel pump and 12 ft. hose
- DOT legal for gasoline, diesel, ethanol, methanol, kerosene, and aviation fuel
- Built from 12-gauge, U.S. aluminium steel for superior strength
- Easy-to-use hose purge feature eliminates messes
- Pumps up to 15 gallons per minute (8 GPM with 40-gallon tank)
- Baffled to prevent fuel sloshing
- 6 year, unlimited mile warranty
- Made in the USA
Models
Part # Gallon Length Width Height Finish 5″ 6.5″ 8″ 0800116206 40 40″ 20″(2) 14.5″(3) BLK y y y 080BL16206 40 40″ 20″(2) 14.5″(3) BLK PC y y y 0800109417 50 50.38″ 12.5″(2) 21.5″(3) BLK n y y 080BL09417 50 50.38″ 12.5″(2) 21.5″(3) BLK PC n y y 080MP09417 50 50.38″ 12.5″(2) 21.5″(3) M/EP n y y 080AP09417 50 50.38″ 12.5″(2) 21.5″(3) AP n y y 0800113244 50/50 47.38″ 28″(2) 21.25″(3) BLK n y y 080BL13244 50/50 47.38″ 28″(2) 21.25″(3) BLK PC n y y 080MP13244 50/50 47.38″ 28″(2) 21.25″(3) M/EP n y y 080AP13244 50/50 47.38″ 28″(2) 21.25″(3) AP n y y 0800109420 82 47.75″ 19.56″(2) 24″(3) BLK n y y 080BL09420 82 47.75″ 19.56″(2) 24″(3) BLK PC n y y 080MP09420 82 47.75″ 19.56″(2) 24″(3) M/EP n y y 080AP09420 82 47.75″ 19.56″(2) 24″(3) AP n y y 0800109418 100 50.75″(1) 33.75″(2) 25″(3) BLK n n y 080BL09418 100 50.75″(1) 33.75″(2) 25″(3) BLK PC n n y 080MP09418 100 50.75″(1) 33.75″(2) 25″(3) M/EP n n y 080AP09418 100 50.75″(1) 33.75″(2) 25″(3) AP n n y 0800109416 109 54.75″ 27″(2) 20″(3) BLK n n y 080BL09416 109 54.75″ 27″(2) 20″(3) BLK PC n n y 080MP09416 109 54.75″ 27″(2) 20″(3) M/EP n n y 080AP09416 109 54.75″ 27″(2) 20″(3) AP n n y BLK = Black
BLKPC = Black Powder Coat
M/EP = Methanol / Ethanol Pump
AP = Aviation Pump(1) = Add 3 in. to the length of the tank for mounting brackets.
(2) = Add 3 in. to the width of the tank for mounting brackets.
(3) = Add 3 in. to the height of the tank for fillneck.
Call or Email us @
Phone: (619) 749-0742
Email: info@socaltruck.com
Address: 10460 Mission Gorge Rd, Santee, CA, 92071
*Please note that the Transferflow transfer tanks are universal. Please call or email for product availability.
Replacement Accessories
| Part # | Description |
|---|---|
| 070FU33645 | 15 GPM 12V GPI Aviation Fuel Refueling Tank Replacement Pump |
| 070FU33200 | 15 GPM 12V GPI Methanol/Ethanol Fuel Refueling Tank Replacement Pump |
| 070FS32685 | Husky .75″ Hose Swivel for Refueling Tanks |
| 0200113959 | GPI Electronic Fuel Meter for Refueling Tanks |
| 0200116384 | In-bed Tank Tie Down Brackets (2) |
Call or Email us @
Phone: (619) 749-0742
Email: info@socaltruck.com
Address: 10460 Mission Gorge Rd, Santee, CA, 92071
*Please note that the Transferflow transfer tanks are universal. Please call or email for product availability.
